…va beh, è facile dai… C’è scritto!
Io in russo so leggere solo Soyuz
E modulo orbitale (se mi concentro)
Quello potrebbe essere lo schermo protettivo per i finestrini? (Sto sparando abbastanza ad intuito)
T -100 (più o meno)
Cosmonauti e astronauta a bordo nel Kazbek (si scrive così?).
La diretta di Roscosmos è live.
intanto, se siete come me e vi piace avere le procedure sotto mano, vi incollo una timeline abbastanza dettagliata delle attività pre-lancio (fonte NASA).
E’ abbastanza vecchia, nel tempo le procedure potrebbero essere leggermente cambiate.
T- 34 Hours | Booster is prepared for fuel loading |
---|---|
T- 6:00:00 | Batteries are installed in booster |
T- 5:30:00 | State commission gives go to take launch vehicle |
T- 5:15:00 | Crew arrives at site 254 |
T- 5:00:00 | Tanking begins |
T- 4:20:00 | Spacesuit donning |
T- 4:00:00 | Booster is loaded with liquid oxygen |
T- 3:40:00 | Crew meets delegations |
T- 3:10:00 | Reports to the State commission |
T- 3:05:00 | Transfer to the launch pad |
T- 3:00:00 | Vehicle first and second stage oxidizer fueling complete |
T- 2:35:00 | Crew arrives at launch vehicle |
T- 2:30:00 | Crew ingress through orbital module side hatch |
T- 2:00:00 | Crew in re-entry vehicle |
T- 1:45:00 | Re-entry vehicle hardware tested. Suits are ventilated |
T- 1:30:00 | Launch command monitoring and supply unit prepared. Orbital compartment hatch tested for sealing |
T- 1:00:00 | Launch vehicle control system prepared for use; gyro instruments activated |
T - :45:00 | Launch pad service structure halves are lowered |
T- :40:00 | Re-entry vehicle hardware testing complete; leak checks performed on suits |
T- :30:00 | Emergency escape system armed; launch command supply unit activated |
T- :25:00 | Service towers withdrawn |
T- :15:00 | Suit leak tests complete; crew engages personal escape hardware auto mode |
T- :10:00 | Launch gyro instruments uncaged; crew activates on-board recorders |
T- 7:00 | All prelaunch operations are complete |
T- 6:15 | Key to launch command given at the launch siteAutomatic program of final launch operations is activated |
T- 6:00 | All launch complex and vehicle systems ready for launch |
T- 5:00 | Onboard systems switched to onboard controlGround measurement system activated by RUN 1 commandCommander’s controls activatedCrew switches to suit air by closing helmetsLaunch key inserted in launch bunker |
T- 3:15 | Combustion chambers of side and central engine pods purged with nitrogen |
T- 2:30 | Booster propellant tank pressurization starts.Onboard measurement system activated by RUN 2 command Prelaunch pressurization of all tanks with nitrogen begins |
T- 2:15 | Oxidizer and fuel drain and safety valves of launch vehicle are closed. Ground filling of oxidizer and nitrogen to the launch vehicle is terminated |
T- 1:00 | Vehicle on internal power.Automatic sequencer on.First umbilical tower separates from booster |
T- :40 | Ground power supply umbilical to third stage is disconnected |
T- :20 | Launch command given at the launch position. Central and side pod engines are turned on |
T- :15 | Second umbilical tower separates from booster |
T- :10 | Engine turbopumps at flight speed |
T- :05 | First stage engines at maximum thrust |
T- :00 | Fueling tower separates |
Lift off |
torri di servizio retratte
il tweet è di qualche minuto fa, ora sono a circa trenta gradi (a occhio)
è stato completato il controllo dei sistemi di bordo
e abbiamo il GO!
AND LIFTOFF!!!
separazione boosters, tutto nominale
Video del liftoff.
E della separazione dei booster, con la formazione della croce di Korolev.

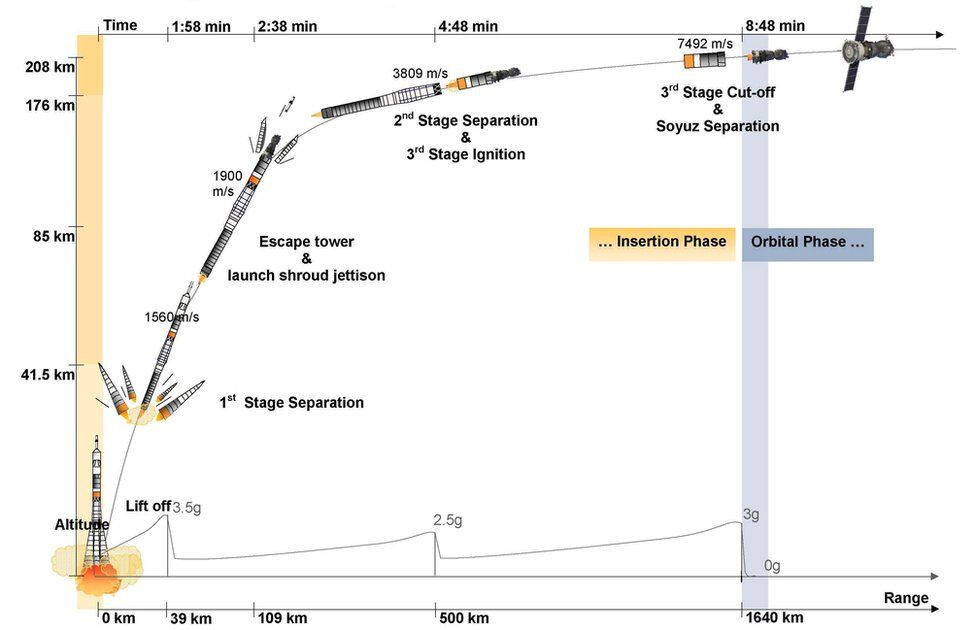

Staging.
Separazione del terzo stadio e apertura dei pannelli fotovoltaici.
fairing jettison
separazione 2°stadio, tutto nominale
stage 3 engine cut-off e separazione
pannelli fotovoltaici aperti
